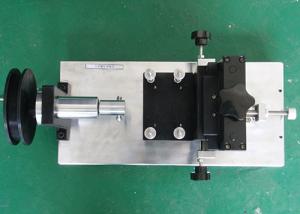

2N Torsion Test Apparatus

Product Categories

Guangzhou Shice Equipment Co., Ltd.

Contact Now

Brand Name : SHC

Model Number : SC-TTL

Certification : CNAS、TUV、ITS、CSA、BV、SGS (cost additional)

Place of Origin : China

MOQ : 1 unit

Price : USD 1000-5000 piece

Payment Terms : T/T, Western Union, MoneyGram, D/A

Supply Ability : 999 units per month

Delivery Time : in 15 working days

Packaging Details : Carton

Standard : IEC60598, UL496 Figure 5, UL1598

Control : Manual

Weight : 2N, 3N, 5N, 7N, 8N each one

for E12 lamp holder : 1.0Nm

for E27, E26 and B22 lamp holders : 2.0Nm

for E39 and E40 lamp holders : 4.0 Nm

for E14 and B15 candle lamp holder : 0.5Nm

for E14 and B15 lamp holders (except candle type) : 1.2 Nm

Contact Now

IEC60598 Apparatus Of Torsion Test Of Lamp Holders With Weight 2N 3N 5N 7N 8N

Product overview:

Manufactured in accordance with IEC60598, UL496 Figure 5, UL1598 and other relevant standards

Screw the corresponding steel test lamp holder into the lamp holder and continuously apply torque test for 1min to assess the lamp holder.

Whether produce craze, whorl join piece whether become loose, fastener whether become loose wait for obstruct to make normally.

Product parameters:

for E12 lamp holder	1.0Nm
for E14 and B15 lamp holders (except candle type)	1.2 Nm
for E27, E26 and B22 lamp holders	2.0Nm
for E39 and E40 lamp holders	4.0 Nm
for E14 and B15 candle lamp holder	0.5Nm
for E10 lamp holder	0.5 Nm
for UL lamp holder	2.25 Nm, 3.39 Nm, 1.13 Nm

1)test torque please reference above list

2) the torque of various lamp holders is configured with corresponding weights.

3) the torque rotary table is driven to rotate by weights of different weights, so as to generate the specified size

In the moment.

After the test, the lampholder shall not have moved from its position and the fixing device

shall show no permanent deformation, so that the lamp, when reinserted, shall be in its

intended position.

2N Torsion Test Apparatus
